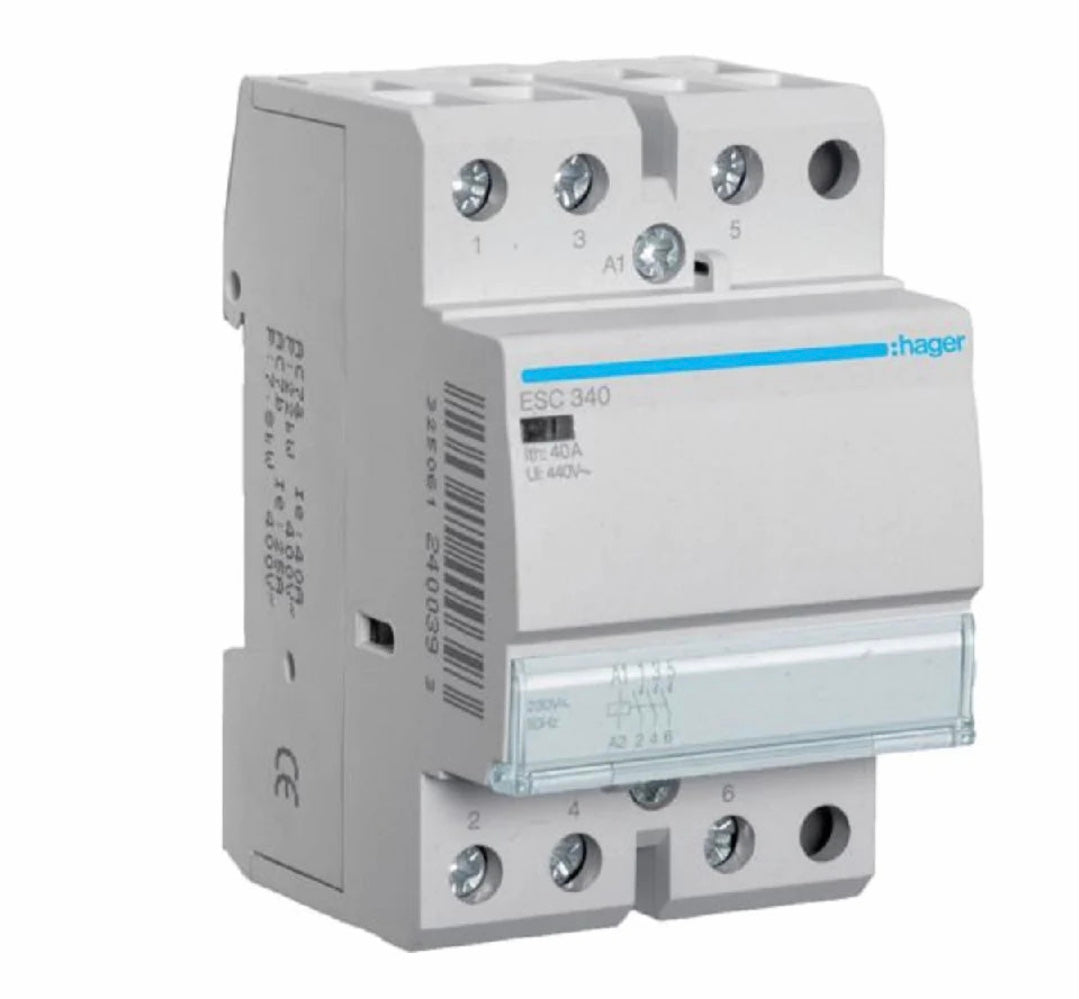

Contactor Hager ESC340 40A - 3Pole

ESC340 Contactor 40A, 3NO, 230V~50Hz

Technical characteristics Architecture Number of poles 3 P Main electrical features Rated operational voltage Ue 400 V Frequency 50 Hz Rated current 40 A Voltage Rated insulation voltage 440 V Rated impulse withstand voltage 4 kV Dimensions Depth of installed product 60 mm Height of installed product 85 mm Width of installed product 54 mm Power Total power loss under IN 15,35 W Power dissipation per coil 0,5 W Endurance Electric endurance in number of cycles 30000 Number of mechanical operations 1000000Capacity Number of modules 3 Fluorescent bulbs control Max. power with fluorescent parallel lamps 1300 VA Incandescent bulbs control Max. power with incandescent lamps 4000 W Installation, mounting Tightening torque Coil: 2,5Nm Power: 3,5Nm Connection Connection cross-sect. flexible conductor 1,5 / 16mm² Connection cross-sect. rigid cable 1,5 / 25mm² Type of connection with screw Number of contacts 3 Type of contacts 3NO Equipment Can be accessorized Yes Standards European directive WEEE concerned Safety Protection index IP IP2X Protection class isol.class II Use conditions Operating temperature -10…50 °C
